KITAKYUSHU DATA CENTER - ASIAN FRONTIER Kitakyushu Data Center

Kitakyushu Data Center (Asian Frontier)
Environmentally-friendly next-generation Data Center using a modular approach with overwhelming expandability

"Kitakyushu Data Center (Asian Frontier)" is one of the largest buildings in Western Japan, built on the vast grounds of Kitakyushu City, Fukuoka Prefecture. It is an environmentally-friendly next-generation Data Center that can always incorporate the latest technology by using a modular approach in which buildings are constructed one by one according to demand. By pursuing optimal air conditioning efficiency, we can achieve a high energy-savings effect while enabling optimal operation of highly integrated servers.

When you consider using the Center for large-scale projects or as a disaster recovery base or expanding business in Asia, please consult with us.

Data Center that Provides New Value

Overwhelming expandability allowing extension up to 11 buildings

Buildings are constructed according to demand regarding one building as one module. This allows us to always adopt the most advanced technology and to shorten the construction period significantly.
In the future, the center can be expanded to a maximum of 11 buildings to meet the large-scale demand of companies that select systems based on the capacity to expand.

Up to 11 buildings can be constructed in Kitakyushu DC.
Site image for construction of up to 11 buildings
Kitakyushu Data Center Building 6
Kitakyushu Data Center Building 6

Building 6 was completed! Operation was started in January 2017!

Building 6, the new "Kitakyushu Data Center" building, can house approx. 610 racks and is to be used for the cloud services and external sales of Yahoo! JAPAN and IDCF.

We plan to construct a maximum of 11 buildings in the future, in order to meet the large-scale demand of companies that select systems based on the capacity to expand.

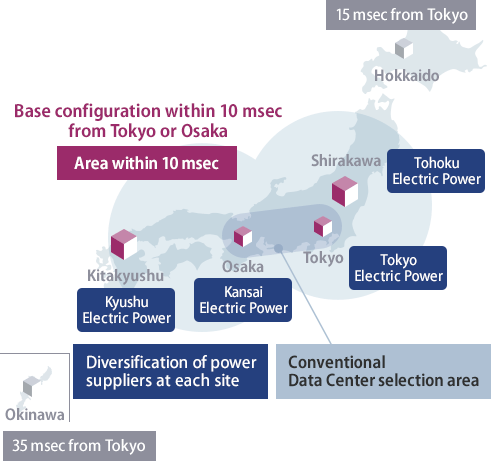

Network configuration within 10 milliseconds from the metropolitan area

Network configuration within 10 milliseconds from the metropolitan area

All of IDC Frontier's Data Centers form a base that covers latency up to Tokyo or Osaka without regard to delays.

Kitakyushu Data Center is connected with Osaka via the high-speed, high-capacity network to provide a response environment within 10 milliseconds.

VR Tour of the Kitakyushu Data Center!

The "Kitakyushu Data Center" is one of the largest Data Centers in western Japan that supports the western region of the IDCF cloud.
At the IDCF Cloud Booth, let's experience virtual reality in the world's most advanced Data Center that you can't usually see!
This video provides a 360-degree view of the inside of the Data Center. Please try it.

Ideal for disaster recovery demand

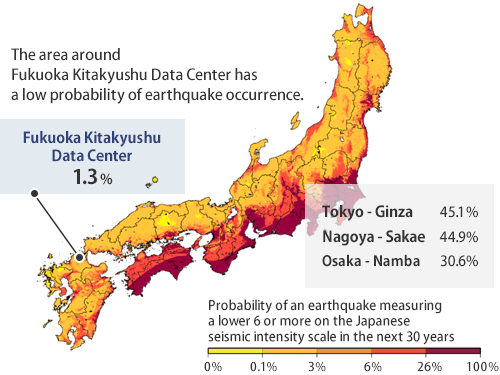

Comparison of earthquake probability in the Kitakyushu DC area and Tokyo, Nagoya and Osaka

In addition to physical data distribution, such as backup sites and Data Center redundancy, this location*, which is considered to have a very low probability of a major earthquake occurring in Japan, also helps to reduce the risk in the event of a major disaster by enabling power suppliers to be diversified.

Source: J-SHIS Map (2016 Edition), website of National Research Institute for Earth Science and Disaster Resilience

* Compared to the 3 major metropolitan areas of Tokyo, Nagoya, and Osaka, the probability of an earthquake measuring lower 6 or more on the Japanese seismic intensity scale in the next 30 years is very low. Moreover, according to the Kitakyushu City Disaster Prevention Information Map (published by Planning Division of Kitakyushu City Construction Bureau), the risk of natural disasters such as river flooding and landslides is low in this area.

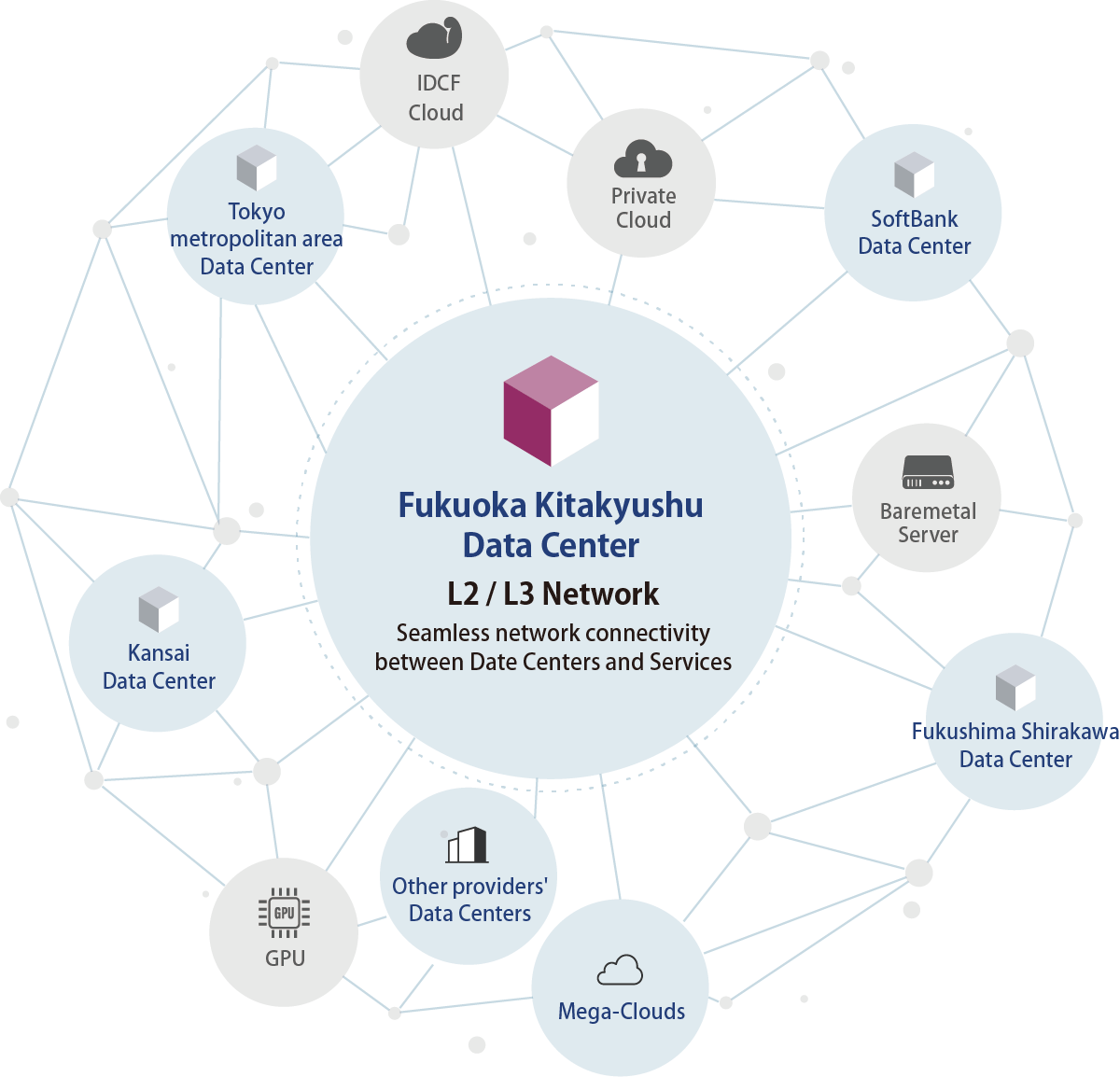

Image of a high-capacity network by Managed GSLB Services

Managed GSLB* services can be used to automatically balance loads among multiple Data Centers or switch to a backup site in the event of a major disaster or failure affecting the customer's primary site.

* Global Server Load Balancing

Data Center without the necessity of entering

When you use the Data Center, we will take care of burdensome relocation and operations, and work that needs to be done in the Data Center.
We will reduce the burden on our customers.

Relocation/Introduction
Construction
Operation
Removal/Disposal

Environmentally-friendly Data Center

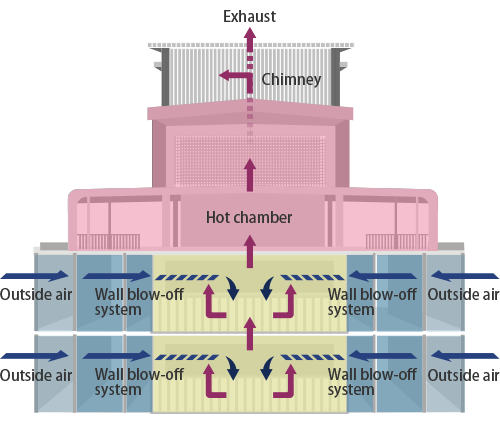

Image of the air conditioning system (Shirakawa Data Center)
Image of the air conditioning system

New environmentally-friendly DC (Building 5)

Building 5 uses the same state-of-the-art outdoor air conditioning system as that in Shirakawa Data Center. Approximately 80% of the annual load is actually covered by natural cooling from outside air, realizing highly efficient and low-cost operation with air-conditioning power consumption reduced significantly.

Image of the air conditioning system
Image of the air conditioning system

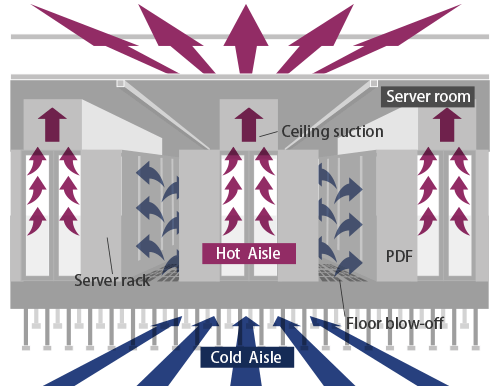

Energy saving and high integration by GreenMall® (Building 1 - 4)

Building 1 to 4 has adopted "GreenMall®" to improve heat circulation efficiency and optimize air conditioning efficiency, so that we can reduce air conditioning power consumption and CO2 emissions and respond to higher integration.

Facilities

Image of the Kitakyushu Operation Center
Kitakyushu Operation Center

High capacity power

Power supply by main line and spare line system. As emergency power supply, the building is equipped with a gas turbine generator that can be operated continuously for 72 hours using an uninterruptible power supply (UPS) and stored fuel.
If you're looking for a Data Center with a high power capacity per rack, you will be satisfied.

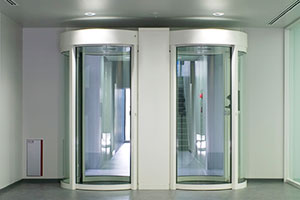

Security portal image
Security portal

Access management by biometric authentication

Fully equipped with a security system using biometrics (biometrics authentication) such as a vein authentication device and security portal to prevent piggyback (tailgating) by measuring body weight and external shape.

Image of entrance
Entrance

Office space

Office space for customers is available in the Data Center. It can also be used as a permanent space, a disaster DR office, or a warehouse for spare equipment. Power for UPS can also be wired.

Amenities and Surroundings

Image of lounge

Lounge

We have a rest area with a vending machine.

Wi-Fi environment

Meeting room

Meeting room with Wi-Fi environment. You can use it for meetings.

Image of convenience store

Convenience store

10-minute walk

Image of eating place

Eating place

There are many around the nearest station.

Image of parking lot

Parking lot

Located on the premises (free of charge)

Image of hotel

Hotel

5-minute walk to the business hotel
